Introduction

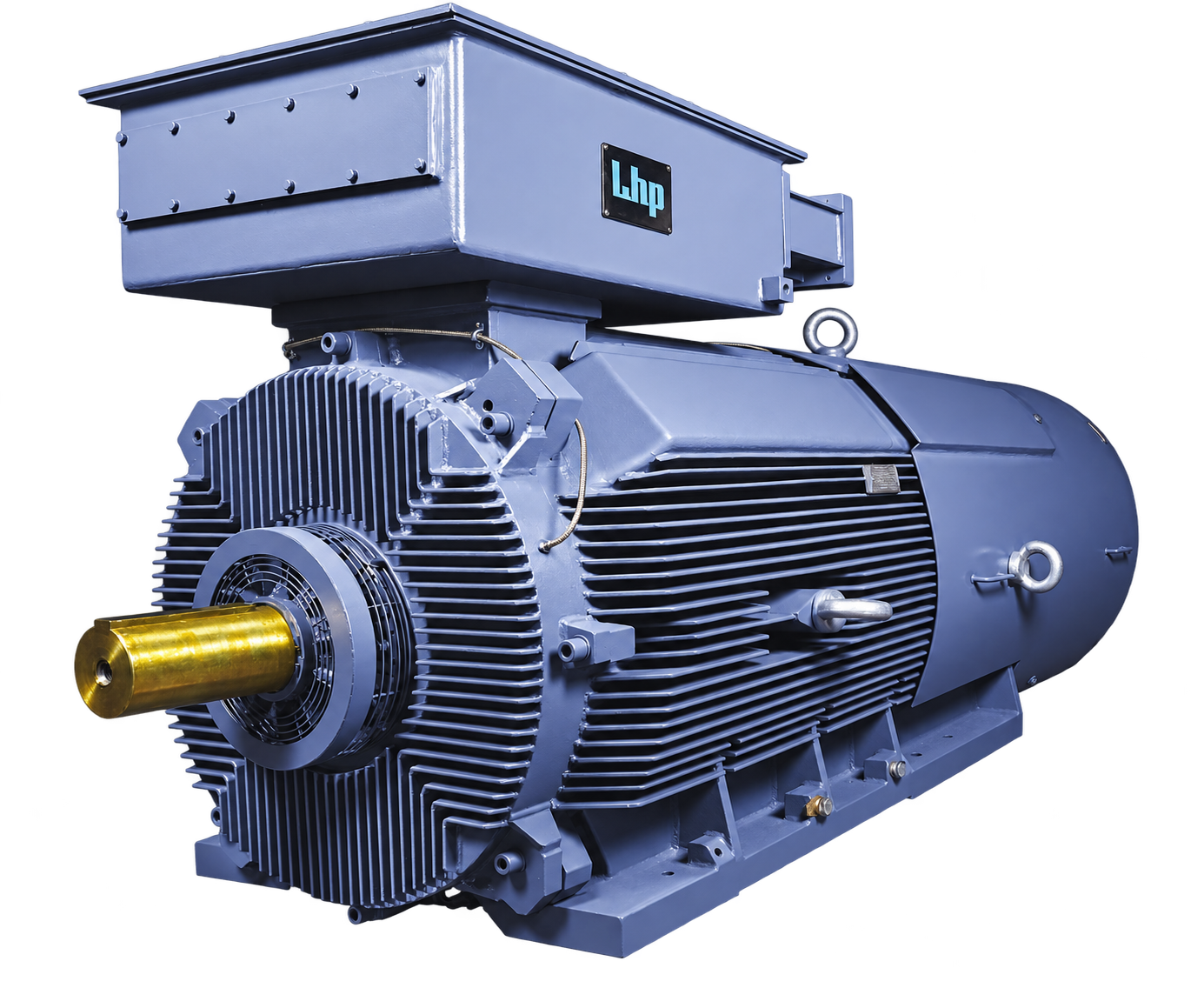

Ultimo IE4 Motors are super-premium, energy-efficient 3-phase motors designed for continuous full-load industrial operation. Built to IEC/EN and BIS standards, they reduce energy losses by nearly 20% compared with IE3 motors—helping lower operating costs and carbon emissions.

Specifications

Range

0.09 kW to 1000 kW

Synchronous RPM

3000, 1500, 1000, 750

Mounting

Foot (B3), Flange (B5), Face (B14), Foot cum Flange (B35) and combinations

Frame

63 to 450

Protection

IP55 standard; IP56, IP57, IP66 and IP67 optional

Insulation

F Class

Voltage

Standard 415 V; optional 110 V to 690 V

Frequency

50/60 Hz

Duty

S1

Introduction

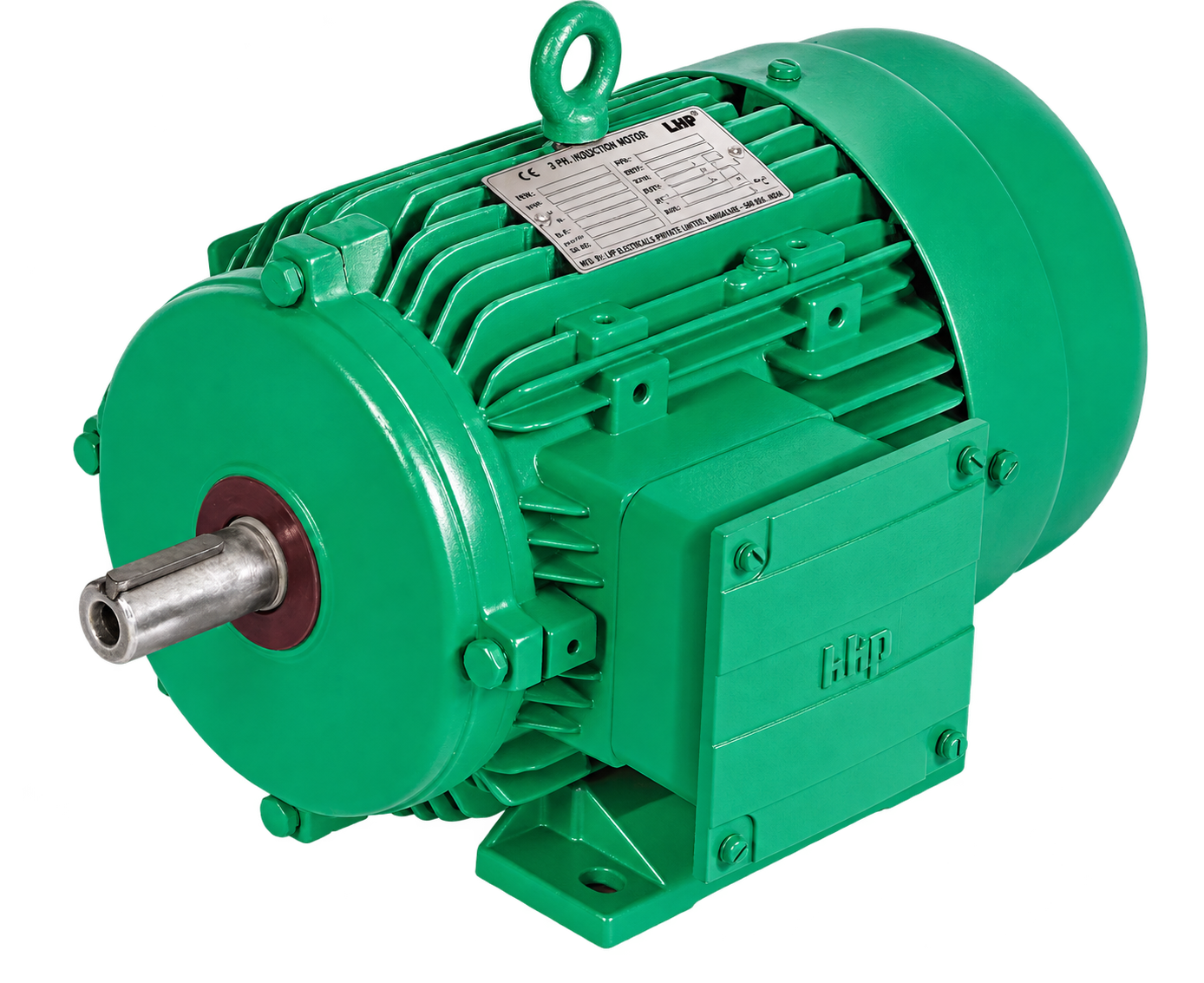

Supremo IE3 Motors are premium-efficiency motors that deliver substantial energy savings compared with standard motors. Developed to IEC/EN energy-saving guidelines and approved by BIS under the latest IS 12615, they are ideal where power costs are a significant part of operating costs. They operate approximately two efficiency bands above IE2 motors, reducing energy losses by around 15%.

Specifications

Range

0.09 kW to 1000 kW

Synchronous RPM

3000, 1500, 1000, 750

Mounting

Foot (B3), Flange (B5), Face (B14), Foot cum Flange (B35) and combinations

Frame

63 to 450

Protection

IP55 standard; IP56, IP57, IP66 and IP67 optional

Insulation

F Class

Voltage

Standard 415 V; optional 110 V to 690 V

Frequency

50/60 Hz

Duty

S1

Introduction

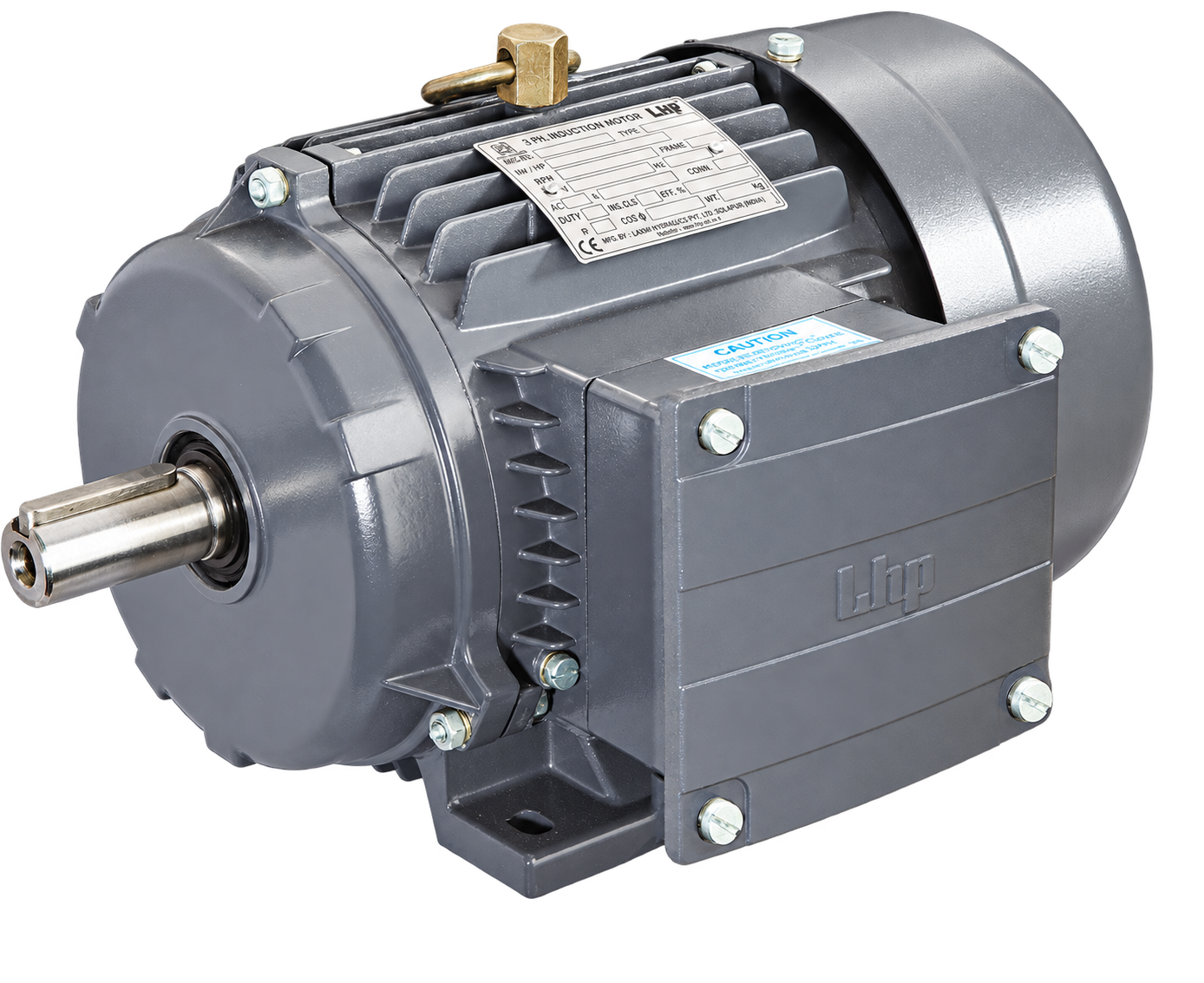

IE2 Motors are high-efficiency motors that offer meaningful power savings over conventional standard motors. Developed to IEC/EN energy-saving guidelines and approved by BIS under the latest IS 12615, they are a cost-effective choice for industrial applications where motors do not operate continuously—helping reduce energy use and carbon footprint without a significant increase in investment.

Specifications

Range

0.09 kW to 1000 kW

Synchronous RPM

3000, 1500, 1000, 750

Mounting

Foot (B3), Flange (B5), Face (B14), Foot cum Flange (B35) and combinations

Frame

63 to 450

Protection

IP55 standard; IP56, IP57, IP66 and IP67 optional

Insulation

F Class

Voltage

Standard 415 V; optional 110 V to 690 V

Frequency

50/60 Hz

Duty

S1

Introduction

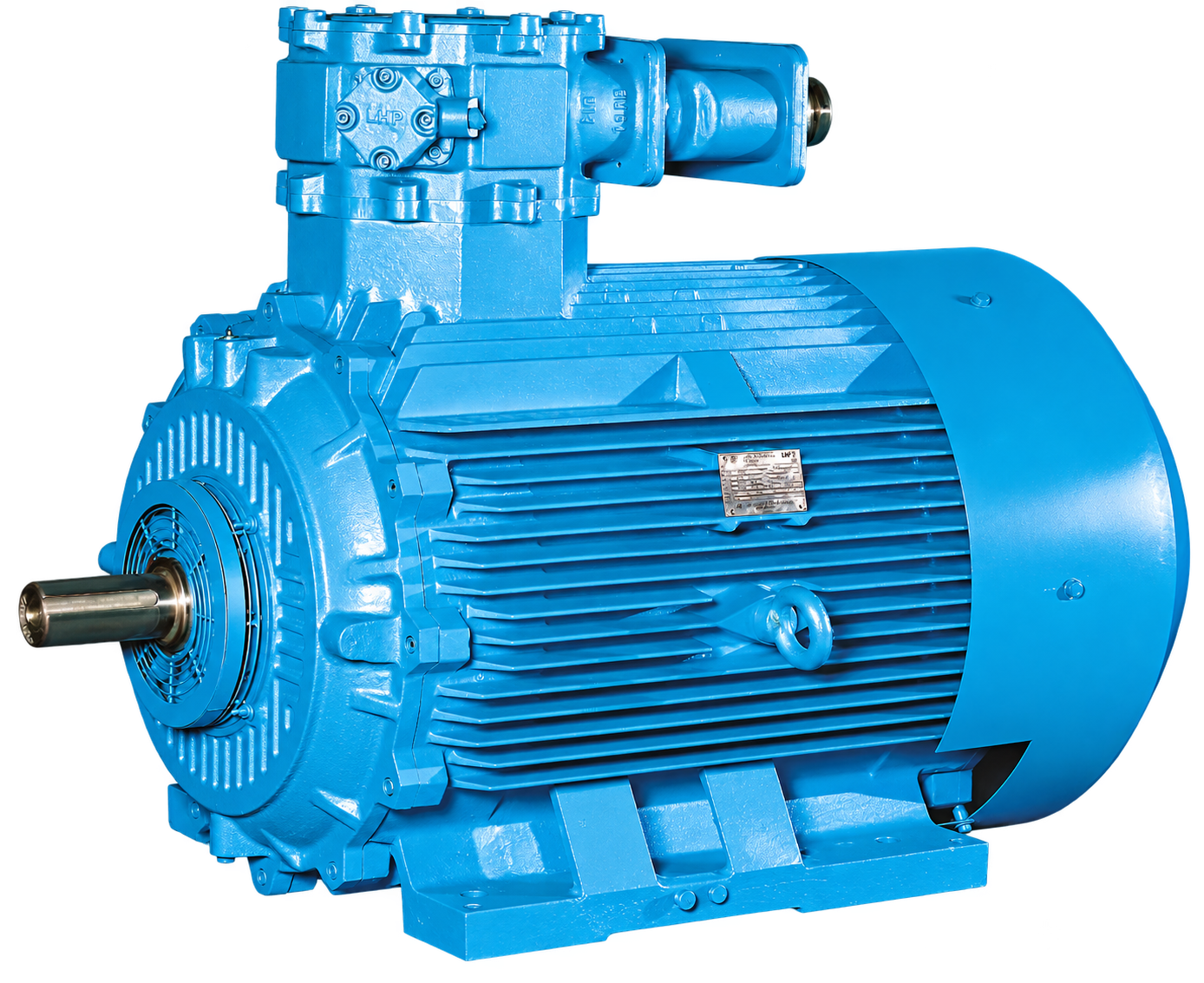

Flame-proof motors are recommended where explosive atmospheres may arise from inflammable gases, dust, or airborne particles. Their construction prevents internal sparks from escaping the motor enclosure and contacting the surrounding atmosphere. LHP offers IE2, IE3 and IE4 flame-proof motors compliant with IS/IEC/EN 60079-1, for Zones 1, 2, 21 and 22; gas groups I, IIA, IIB and IIC; and temperature classes up to T6. Flame-proof brake motors and single-phase versions are also available.

Specifications

Range

Up to 500 kW

Synchronous RPM

3000, 1500, 1000, 750

Mounting

Foot (B3), Flange (B5), Face (B14), Foot cum Flange (B35) and combinations

Frame

63 to 355L/K

Protection

IP55 standard; IP56, IP57, IP66 and IP67 optional

Insulation

F Class

Voltage

Standard 415 V; optional 110 V to 690 V

Frequency

50/60 Hz

Duty

S1

Introduction

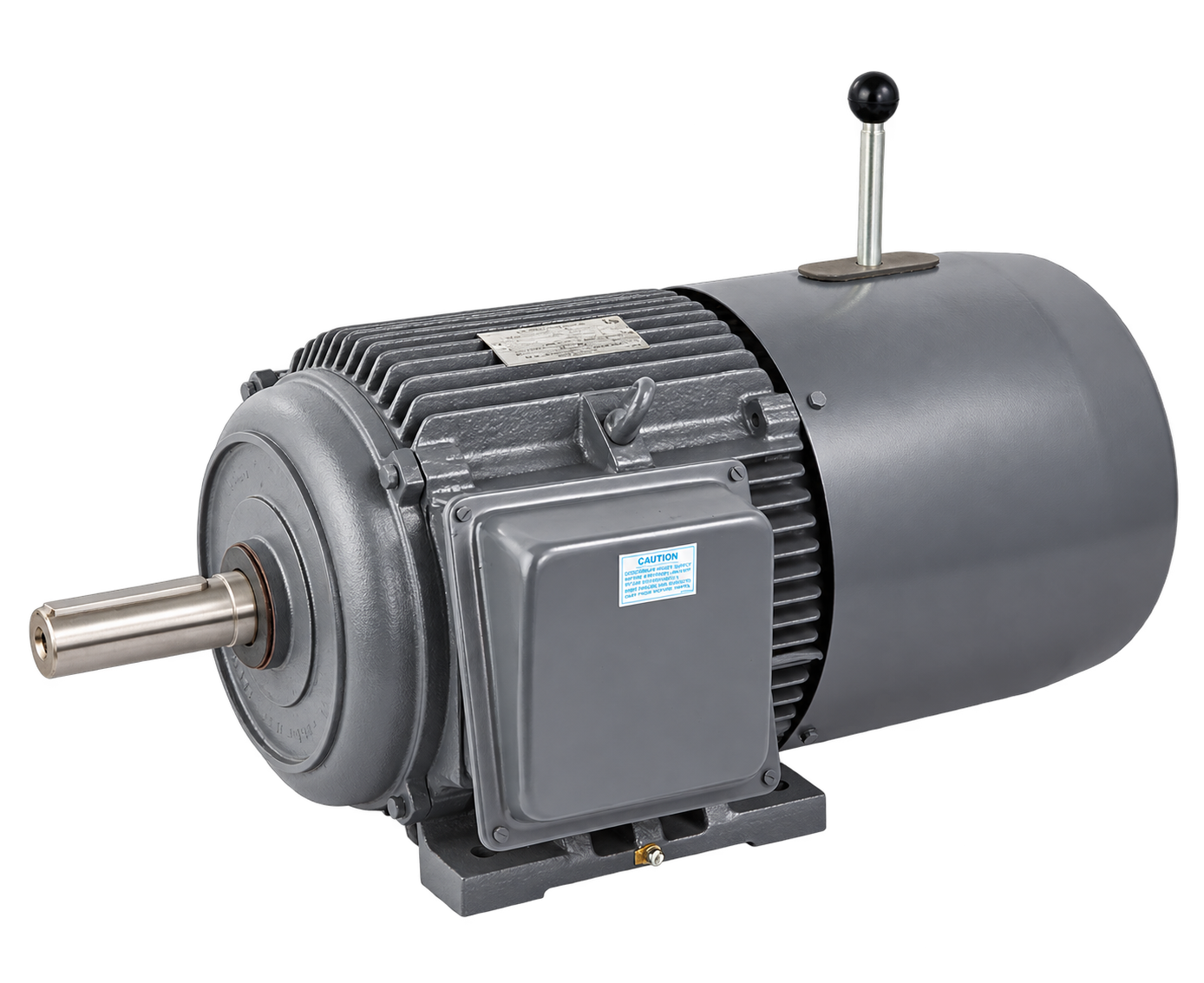

Brake motors are used where reliable, safe stopping for short durations is required, such as on packaging lines. LHP brake motors use fail-safe electromagnetic brakes mounted on the rear end-shield. The DC brakes engage when the power supply is switched off, with rectifiers in the terminal box converting the AC supply to DC for brake operation.

Specifications

Range

0.09 kW to 90 kW

Synchronous RPM

3000, 1500, 1000, 750

Mounting

Foot (B3), Flange (B5), Face (B14), Foot cum Flange (B35) and combinations

Frame

63 to 250

Protection

IP55 standard; IP56, IP57, IP66 and IP67 optional

Insulation

F Class

Voltage

Standard 415 V; optional 110 V to 690 V

Frequency

50/60 Hz

Duty

All

Introduction

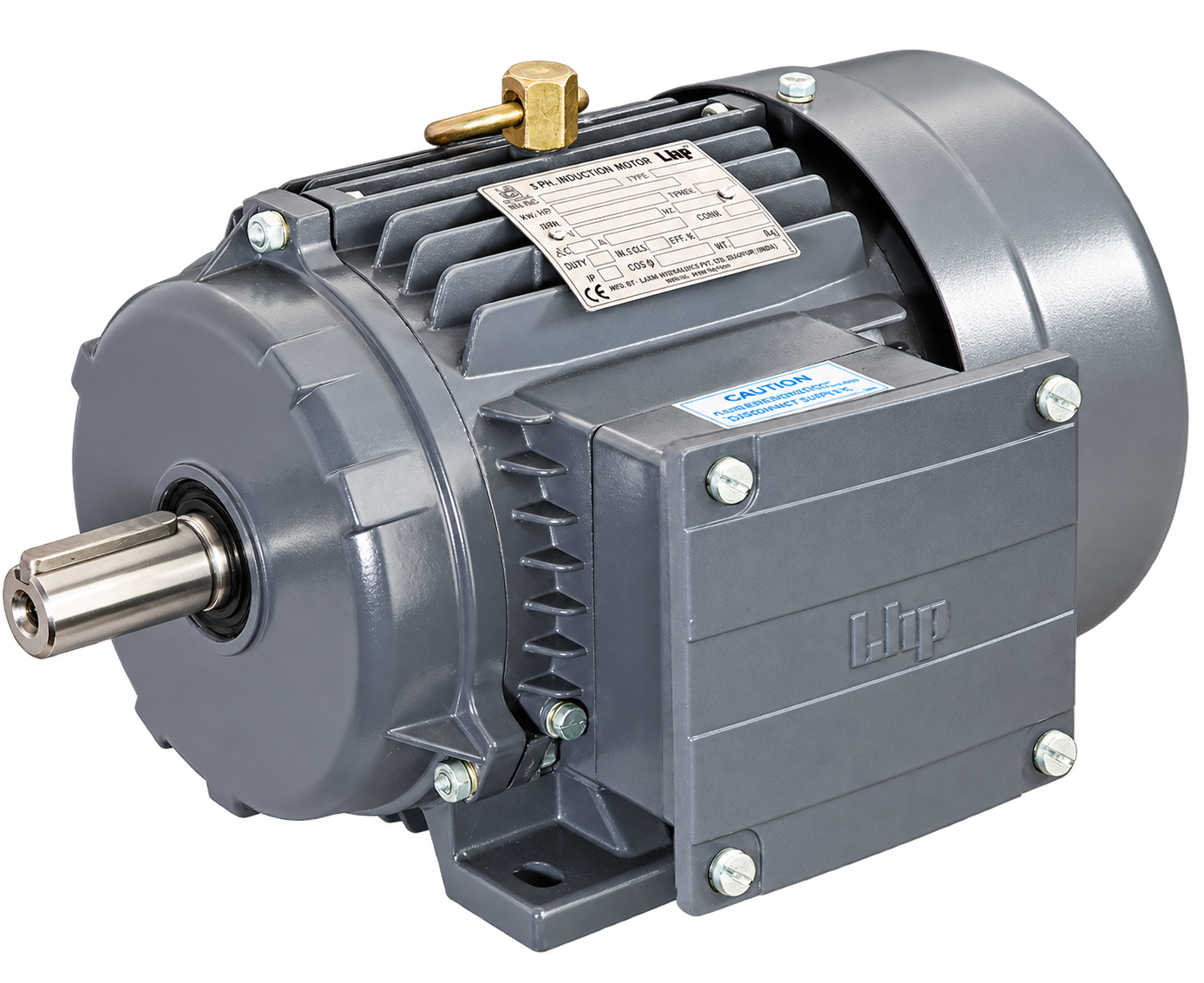

Crane and hoist duty motors are designed for demanding intermittent-duty drives that need high starting torque with low starting current. They withstand frequent start-stop and reversal operations. Their duty rating defines the complete load cycle, including starting, electric braking, no-load and de-energized rest periods. LHP offers S1 through S9 duty options in accordance with IS 12824.

Specifications

Range

0.37 kW to 315 kW

Synchronous RPM

1500, 1000, 750

Mounting

Foot (B3), Flange (B5), Face (B14), Foot cum Flange (B35) and combinations

Frame

71 to 355

Protection

IP55 standard; IP56, IP57, IP66 and IP67 optional

Insulation

F Class

Voltage

Standard 415 V; optional 110 V to 690 V

Frequency

50/60 Hz

Duty

S2, S3, S4, S5, S7, S8

Introduction

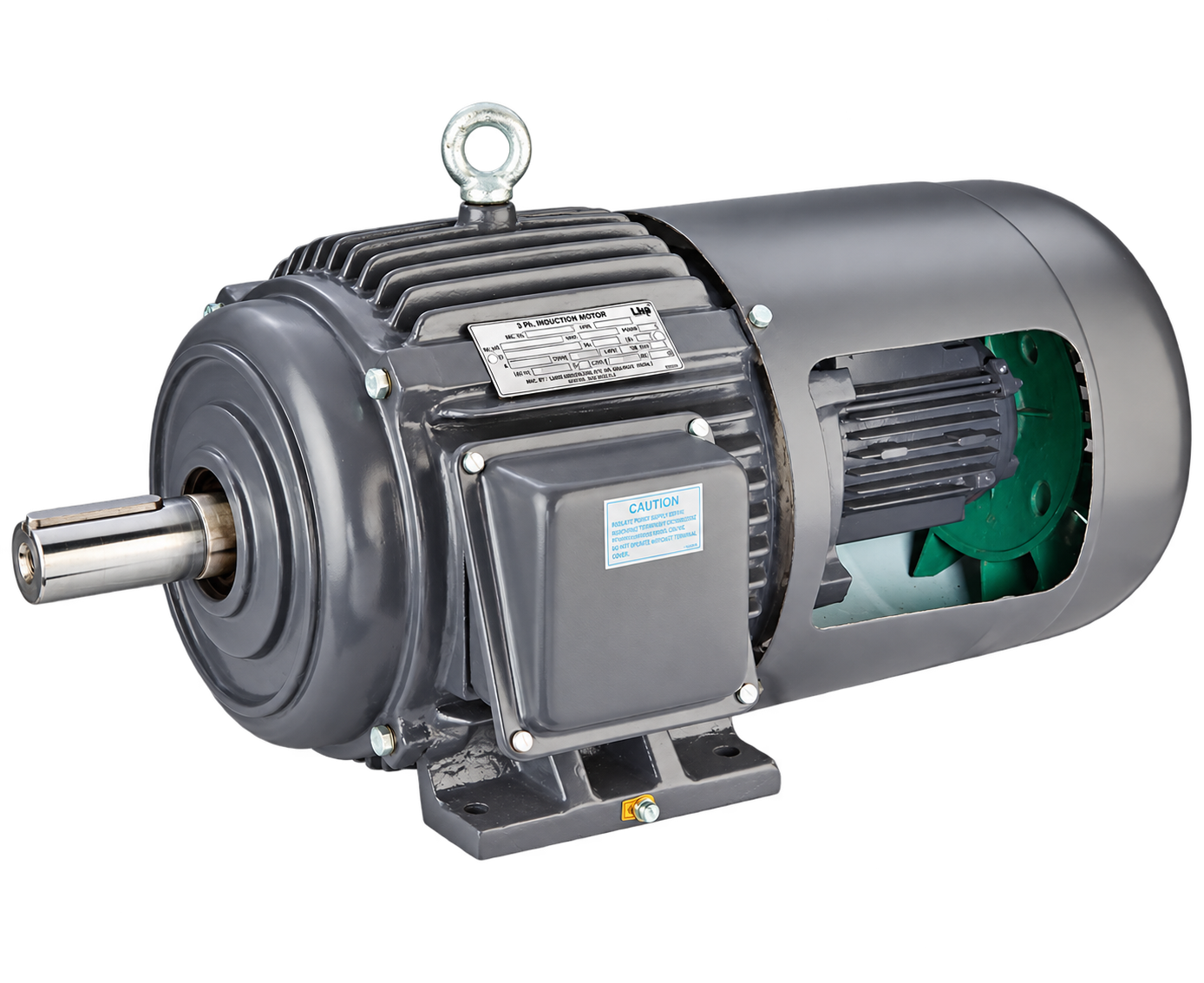

Inverter duty motors are recommended when a Variable Frequency Drive (VFD) is used to control process parameters. Their special construction withstands VFD voltage spikes and supports very low-speed operation without overheating. LHP tests inverter-duty motors with VFDs at its KLPL- and PESO-approved Test Lab. Available in IE2, IE3 and IE4 efficiencies, they feature insulated bearings, dual-coated high-grade copper winding wires, 100% vacuum-pressure impregnation, and optional force cooling after application review.

Specifications

Range

0.09 kW to 1000 kW

Synchronous RPM

3000, 1500, 1000, 750

Mounting

Foot (B3), Flange (B5), Face (B14), Foot cum Flange (B35) and combinations

Frame

63 to 450

Protection

IP55 standard; IP56, IP57, IP66 and IP67 optional / IC 416

Insulation

F Class

Voltage

Standard 415 V; optional 110 V to 690 V

Frequency

50/60 Hz

Duty

As per requirement

Introduction

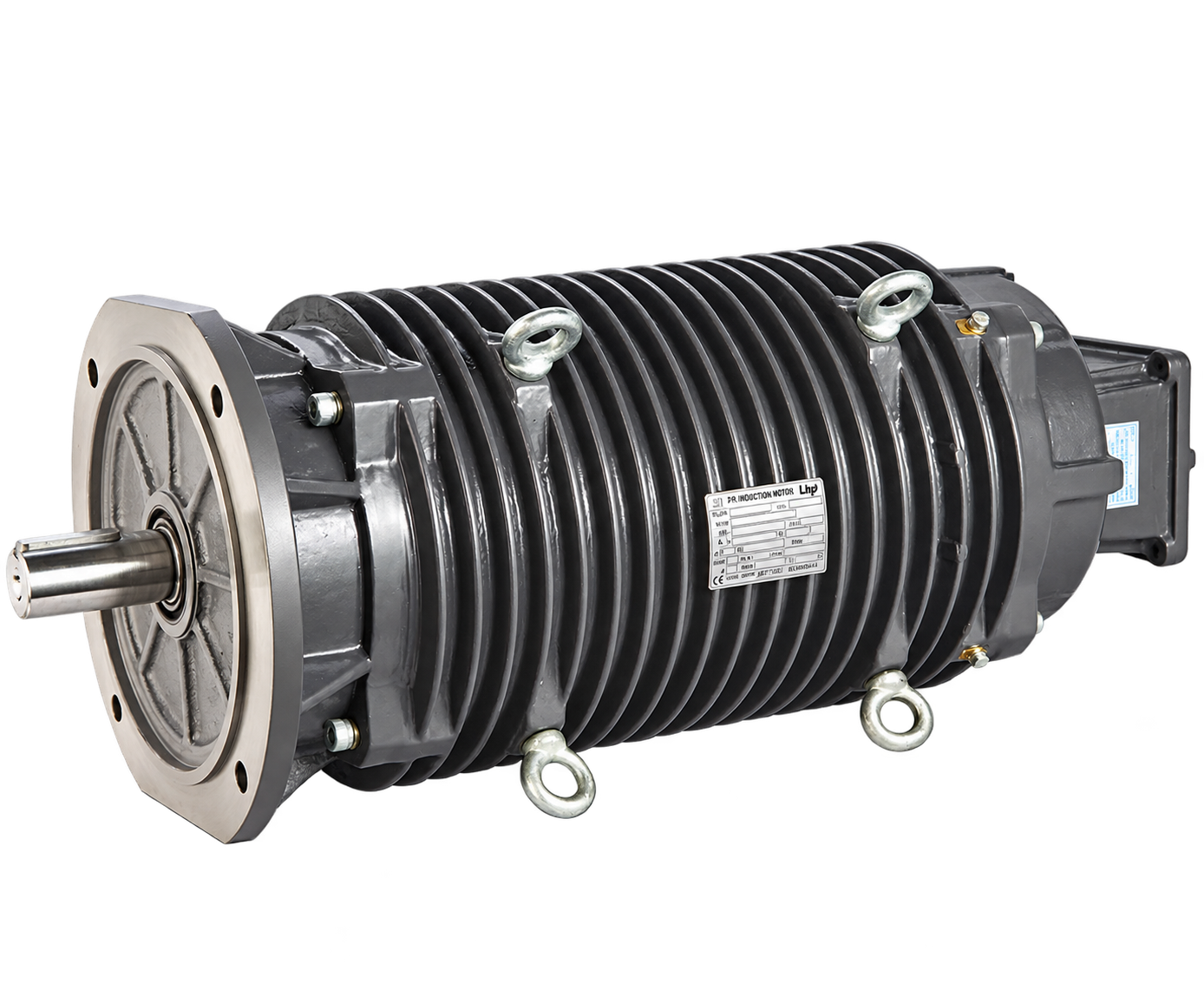

Roller Table Motors are specially developed for conveyors that move steel billets through roller mills in steel plants. They comply with IPSS No. 1-03-007-14 and are available up to 450 frame size in 4, 6 and 8 poles, for ambient temperatures from −35°C to +70°C. Circular-fin frames and options such as online greasing, PTC thermistors, RTD winding sensors, BTD bearing sensors, encoders and electromagnetic brakes support demanding steel-mill operation.

Specifications

Range

Up to 500 kW

Synchronous RPM

3000, 1500, 1000, 750

Mounting

Foot (B3), Flange (B5), Face (B14), Foot cum Flange (B35) and combinations

Frame

Up to 355

Protection

IP55 standard; IP56, IP57, IP66 and IP67 optional

Insulation

H Class

Voltage

Standard 415 V; optional 110 V to 690 V

Frequency

50/60 Hz

Stalled rotor withstand

Up to 15 min. max. or as per customer requirement

Duty

S3, S4, S1, S5, S6 and S7

Introduction

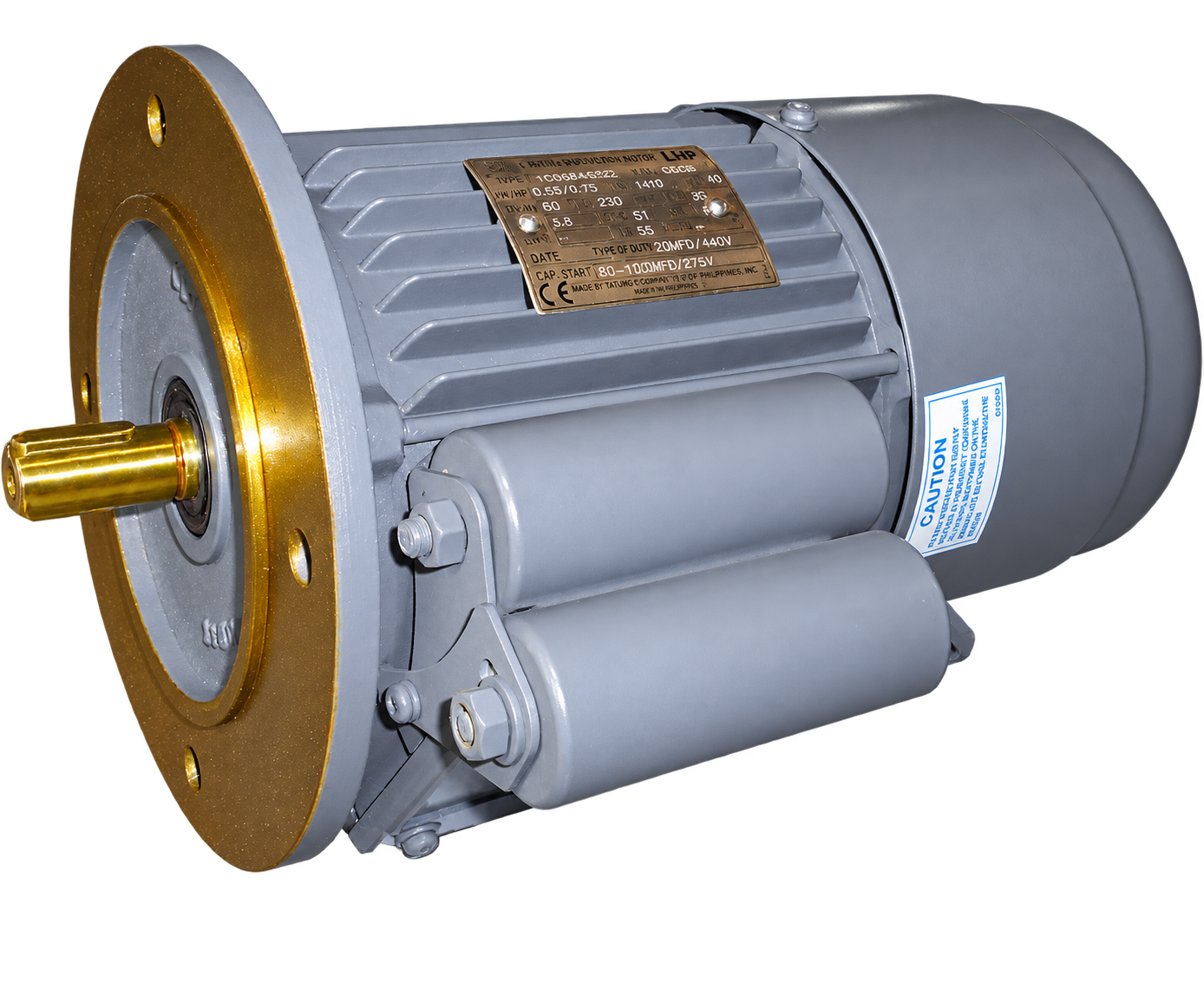

LHP offers a considerable range of single-phase Capacitor Start Capacitor Run motors designed to meet high-torque requirements.

Specifications

Range

0.18 kW to 1.5 kW

Synchronous RPM

3000, 1500

Mounting

Foot (B3), Flange (B5), Face (B14), Foot cum Flange (B35) and combinations

Frame

71 to 100

Protection

IP55

Insulation

F Class

Voltage

230 V

Frequency

50/60 Hz

Duty

S1
